- Type:Centrifugal Fan
- Applicable Industries:Hotels
- Applicable Industries:Building Material Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Restaurant
- Applicable Industries:Food Shop
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- Applicable Industries:Advertising Company
- Mounting:FREE STANDING

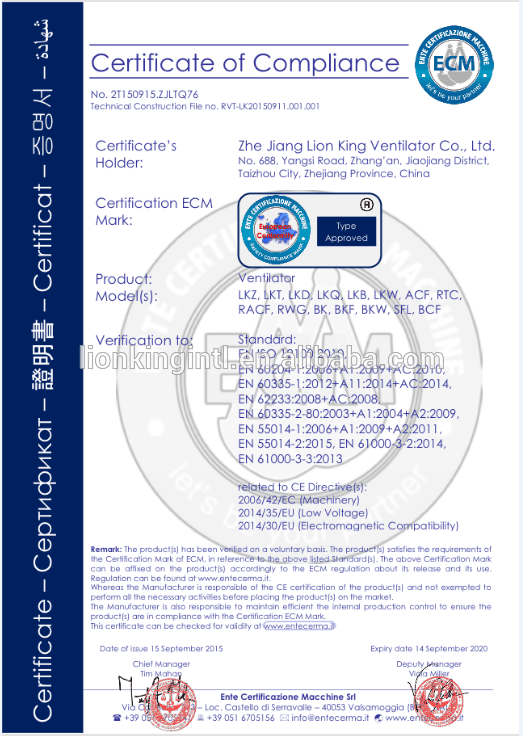

- Certification:CCC
- Certification:ce
- Warranty:1 Year
- After-sales Service Provided:Online support
- Place of Origin:CN;ZHE
- Brand Name:LION KING
- Voltage:380V
- Blade Material:galvanized sheet
- Certification:Other
- After-sales Service Provided:No overseas service provided
- Driving Mode:Single phase motor direct drive
- Impeller diameter:200~320mm
- Total pressure:68~624Pa
- Sound range:50-73 dB(A)

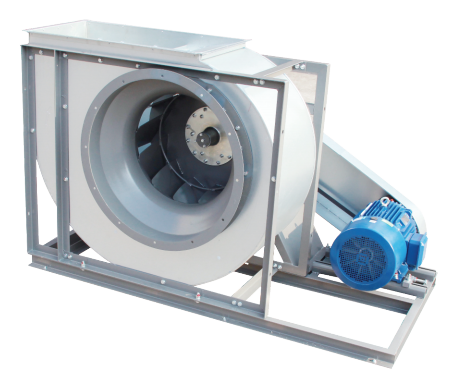

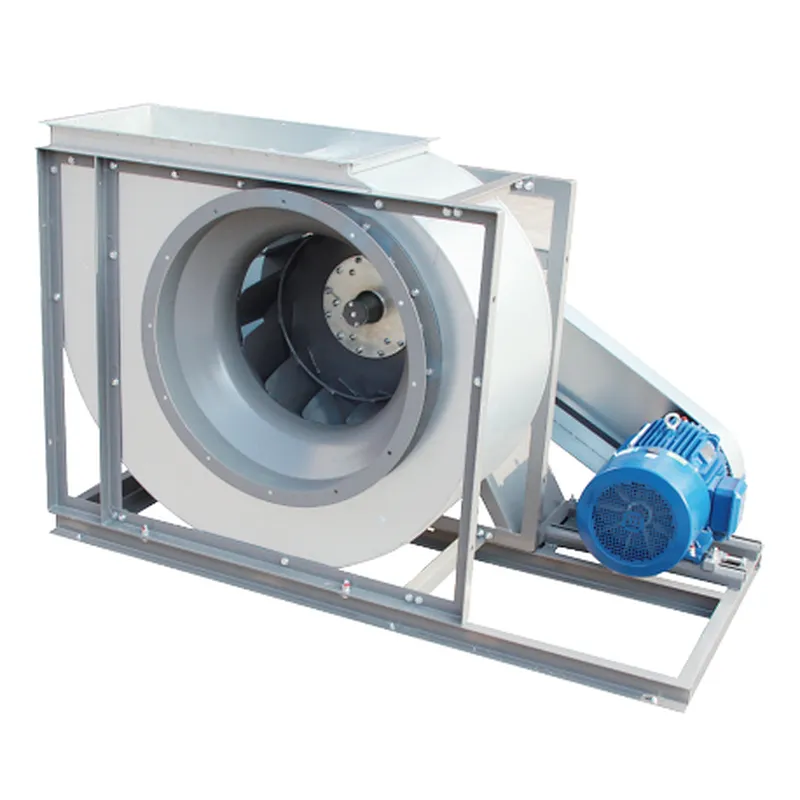

LKQS backward-curved single layer plate centrifugal fan
LKQS series of centrifugal fan were developed with advanced technologies. Includes 13 kinds of models are described in this catalogue. The volume flow of the LKQS series ranges from 1000m³ to 120000m³. Some of the feature and characteristics of these fans are: compact structure, high efficiency, low noise and so on. These fans are ideal for use in centrifugal air-conditioning systems, in purifiers. They are also suitable for use in variety of other ventilation.
Impefier Diameter: 180 ~1400mm
Air Volume Range: 1000~120000m3/h
Total Pressure Range: 100~3000Pa
Sound Rmnge: 80~110dB(A)
Drive Type: Belt drive
Model: 200, 250, 280,315, 355, 400, 450, 500, 560, 630, 710, 800, 900, 1000, 1120, 1250, 1400
Applications: Subsidiary equipment for various central air-conditioning units, and other heating, air-conditioning, purification, ventilating equipment.
Ventilation Fan:
1.high efficiency
2.low noise
3.high versatility
4.air-conditioning centrifugal fan
5.motor type brushless or not
Other similar centrifugal fan
Contact Information | |||||
 | Cell phone | 008618167069821 |  | ||
 | Skype | live:.cid.524d99b726bc4175 |  | lionkingfan | |
 | 2796640754 |  | |||
 | Website | ||||
Zhejiang Lion King Ventilator Co., Ltd., a professional manufacturer of various axial fans, centrifugal fans, air-conditioning fans, engineering fans, mainly consists of Research and Development Department, Production Department, Sales Department, Testing Center, and Customer Service.
