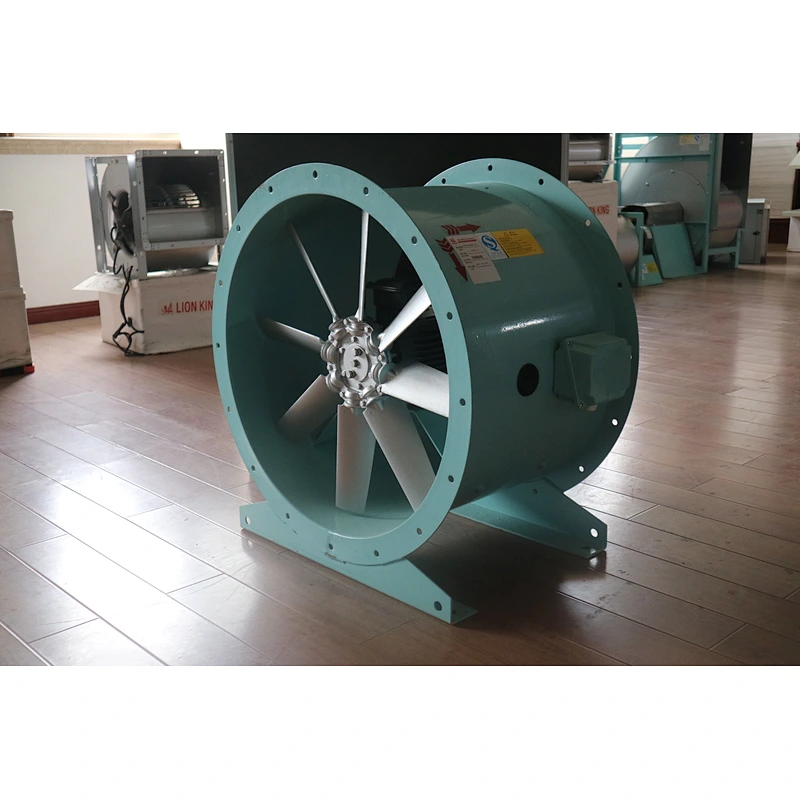

ACF-MA WALL MOUNTED ALLOY ALUMINIUM IMPELLER EXHAUST AIR APPLICATION FIRE RATED AXIAL FLOW FANS
ACF-MA WALL MOUNTED ALLOY ALUMINIUM IMPELLER EXHAUST AIR APPLICATION FIRE RATED AXIAL FLOW FANS
ACF-MA WALL MOUNTED ALLOY ALUMINIUM IMPELLER EXHAUST AIR APPLICATION FIRE RATED AXIAL FLOW FANS
ACF-MA WALL MOUNTED ALLOY ALUMINIUM IMPELLER EXHAUST AIR APPLICATION FIRE RATED AXIAL FLOW FANS
ACF-MA WALL MOUNTED ALLOY ALUMINIUM IMPELLER EXHAUST AIR APPLICATION FIRE RATED AXIAL FLOW FANS
ACF-MA WALL MOUNTED ALLOY ALUMINIUM IMPELLER EXHAUST AIR APPLICATION FIRE RATED AXIAL FLOW FANS
ACF-MA WALL MOUNTED ALLOY ALUMINIUM IMPELLER EXHAUST AIR APPLICATION FIRE RATED AXIAL FLOW FANS
ACF-MA WALL MOUNTED ALLOY ALUMINIUM IMPELLER EXHAUST AIR APPLICATION FIRE RATED AXIAL FLOW FANS
ACF-MA WALL MOUNTED ALLOY ALUMINIUM IMPELLER EXHAUST AIR APPLICATION FIRE RATED AXIAL FLOW FANS
ACF-MA WALL MOUNTED ALLOY ALUMINIUM IMPELLER EXHAUST AIR APPLICATION FIRE RATED AXIAL FLOW FANS
ACF-MA WALL MOUNTED ALLOY ALUMINIUM IMPELLER EXHAUST AIR APPLICATION FIRE RATED AXIAL FLOW FANS
ACF-MA WALL MOUNTED ALLOY ALUMINIUM IMPELLER EXHAUST AIR APPLICATION FIRE RATED AXIAL FLOW FANS
ACF-MA WALL MOUNTED ALLOY ALUMINIUM IMPELLER EXHAUST AIR APPLICATION FIRE RATED AXIAL FLOW FANS

ACF-MA WALL MOUNTED ALLOY ALUMINIUM IMPELLER EXHAUST AIR APPLICATION FIRE RATED AXIAL FLOW FANS

Model NO.
ACF-MA 630
Quantity:

ACF-MA WALL MOUNTED ALLOY ALUMINIUM IMPELLER EXHAUST AIR APPLICATION FIRE RATED AXIAL FLOW FANS

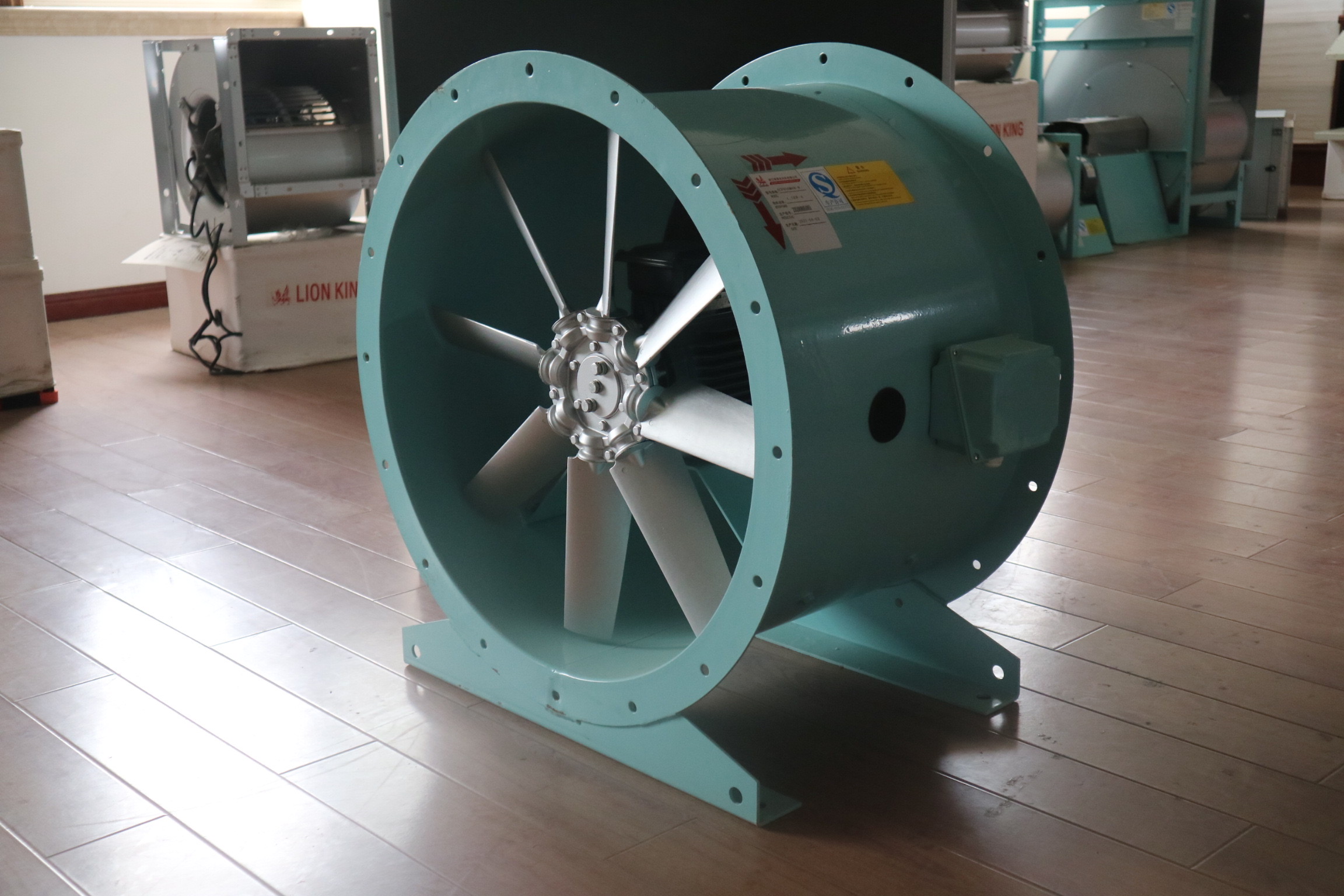

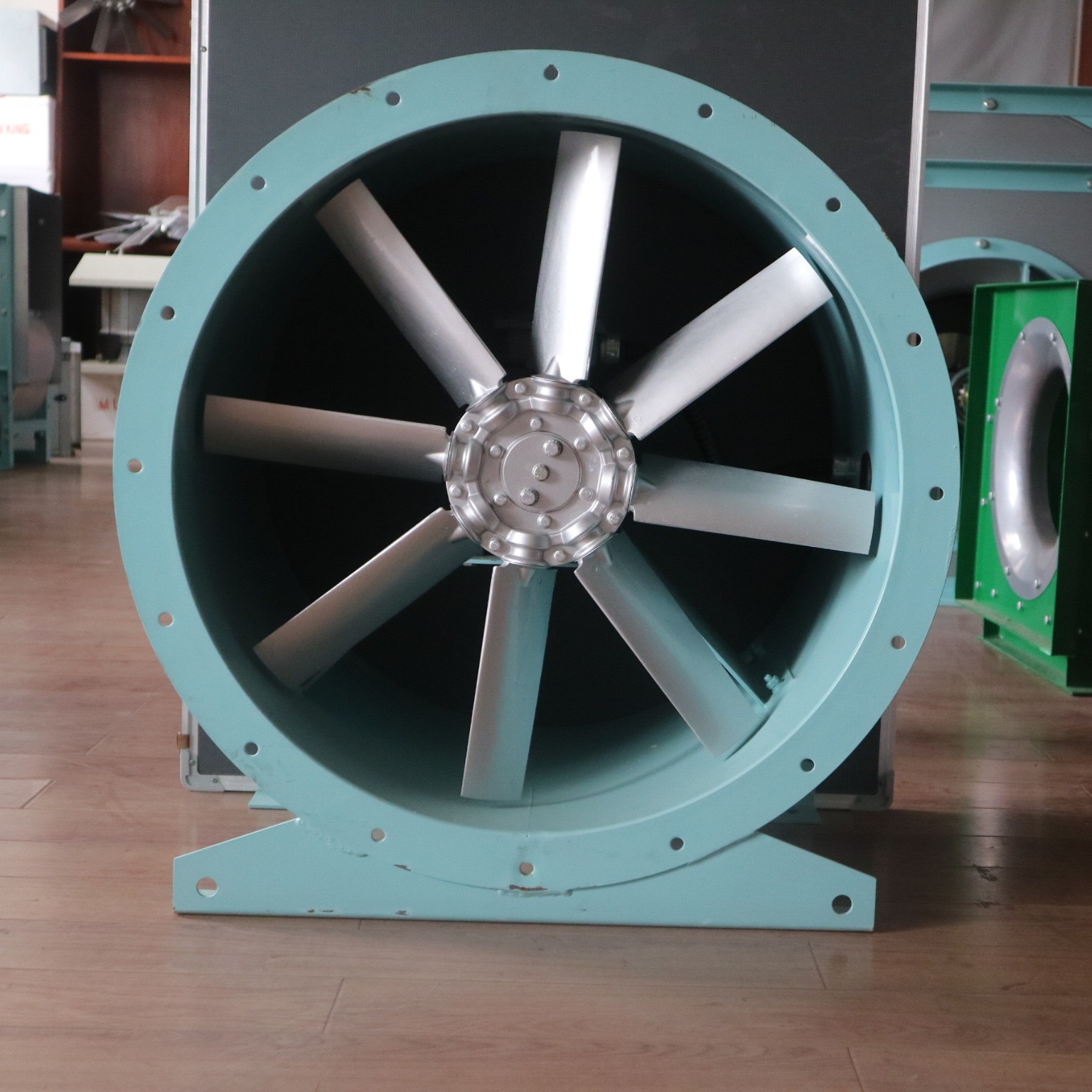

ACF series Fire Rated Axial Flow fans are used in exhaust air application, where fresh air intake & stale/polluted air exhaust is needed. These fans are having cast alloy aluminium impeller, statically & dynamically balanced, and directly coupled with electric motor. The fans which come under this category are Wall Mounted, Duct Mounted & Foot Mounted. This fan suitable for 280℃ for 0.5 Hr in Case of Fire. These fan suitable for Basement Car Parking Ventilation, Tunnel Ventilation, Lift & Staircase Pressurization & Industrial Ventilation.
  • FOB Price: US $100 - 999 / Piece
  • Min.Order Quantity: 1Piece
  • Supply Ability: 3000 Piece/Pieces per Month
  • Brand Name: LIONKING
  • Model Number: ACF
  • Material: Galavnized Steel
  • Voltage: 380V
  • Air Volume: 1000-12000m³/h
  • Speed: 480~1450r/m
  • Certification: AMCA ,CE ,ROHS,CCC
  • Type: Axial Fan
  • Brand Name: LIONKING
  • Model Number: ACF
  • Material: Galavnized Steel
  • Mounting: Wall Mounted
  • Pressure: Medium Pressure
  • Voltage: 380V
  • Power: 7.5~4000KW
  • Air Volume: 1000-12000m³/h
  • Speed: 480~1450r/m
  • Certification: AMCA ,CE ,ROHS,CCC
Impeller Diameter:315~1250mm
Air Volume Range:1000~12000m3/h
Working Temperature:Work continuously more than 0.5 hours in 280C  gas fume.
Applications:Mainly used for ventilation and fire fighting exhaust  systems at special places of engineering buildings(such as explosion-proof or anti-corrosion environment

The ACF-MA series axial fans were developed by Zhejiang LION KING Ventilator Co., ltd. There are 15 models of the axial fans in the AXA series that ranges from sizes 315 to 1600 mm Wheel diameter. The air volume ranges from 1,000 m3/h to 230,000 m3/h, and the total pressure can be achieved 1500 Pa. AXA series fan units are dual-purpose fans ( standard and fireproof), they can continuous operate over 0.5 hours when the flue gas temperature reaches 280 °C, these fans have been tested by the"National Fire Equipment Quality Supervision and Test Center". They are new-type for high-rise buildings about the dual-purpose ventilation.

Download More Technical Data Here  →


Specification

1. Impeller Diameter: 315 ~1250mm.

2. Air Volume Range: 1000~12000m3/h.

3. Total Pressure Range: 200~1600Pa

4. Sound Range: 60~84 dB(A).

5. Drive Type: External rotor motor direct drive.

6. Model: 315, 355,400, 450, 500, 560,630,710,800,900,1000,1120,1250,1400,1600

7. Applications:This fan suitable for 250 Deg C for 2Hr in Case of Fire. These fan suitable for Basement Car Parking Ventilation, Tunnel Ventilation, Lift & Staircase Pressurization & Industrial Ventilation.

01 02 03 04 05

Construction of Product

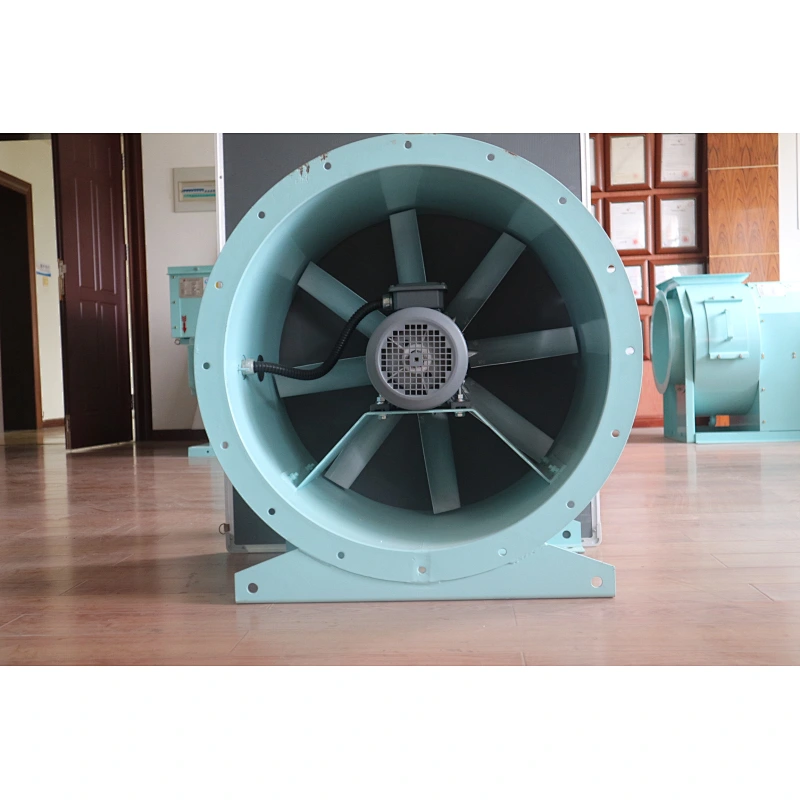

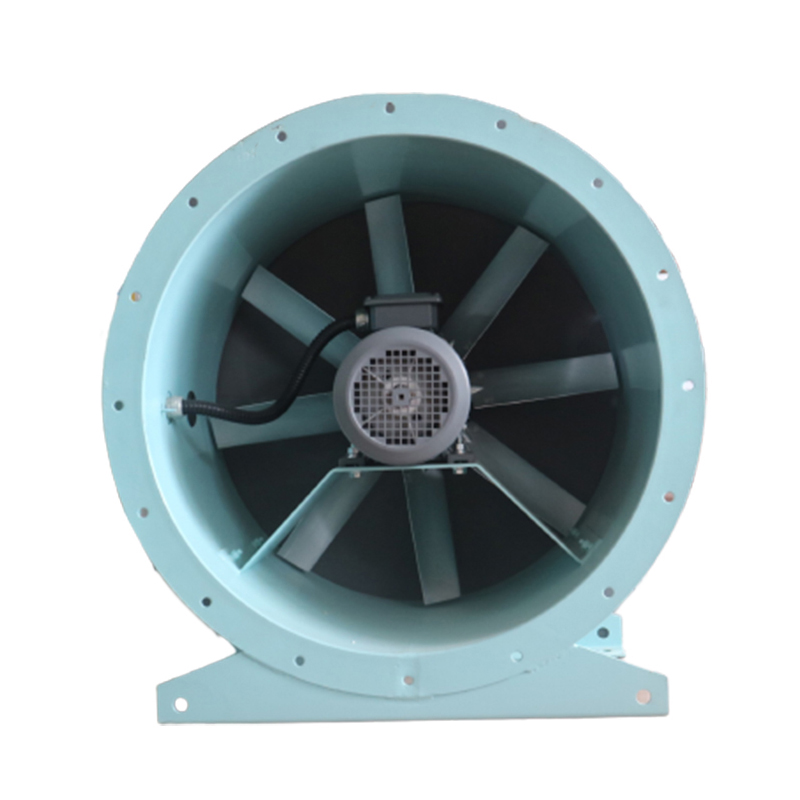

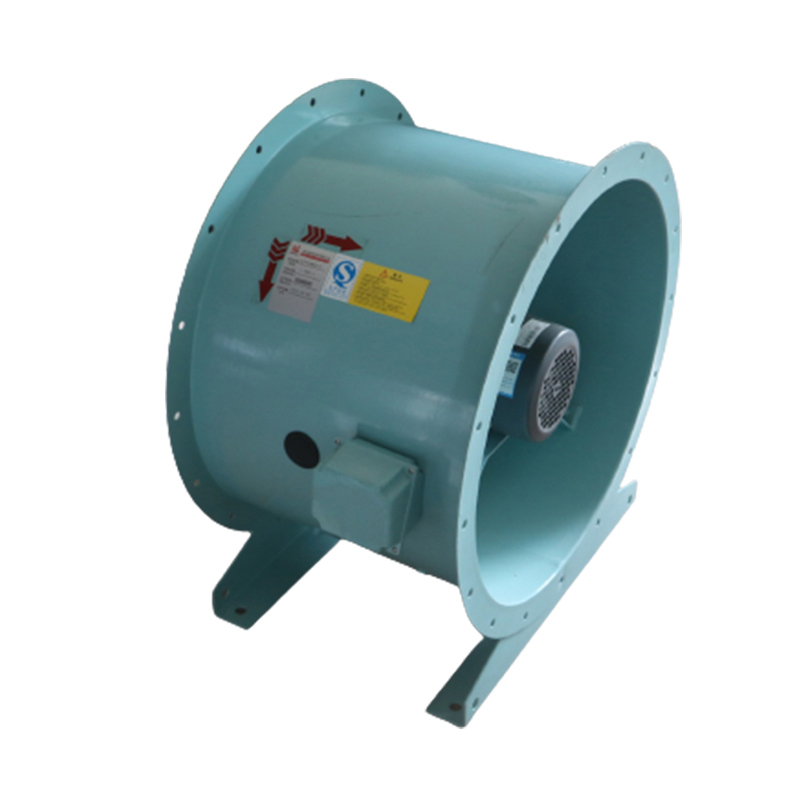

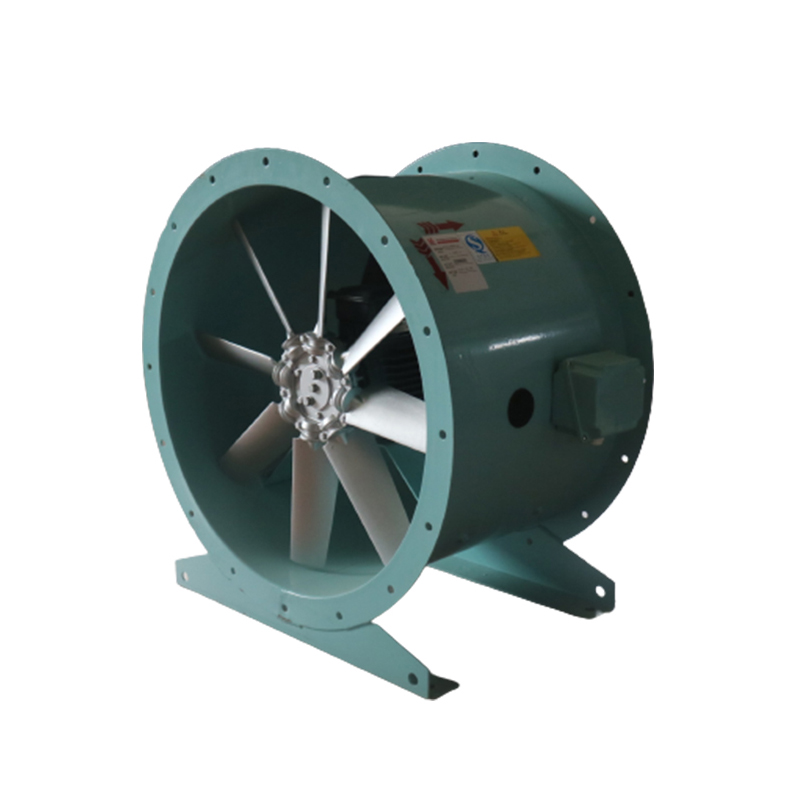

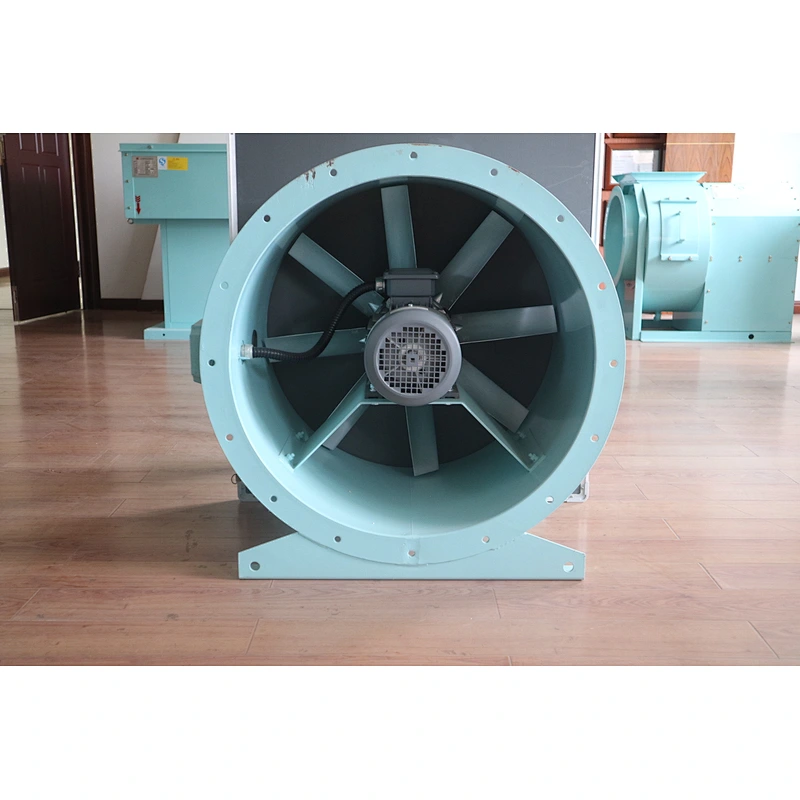

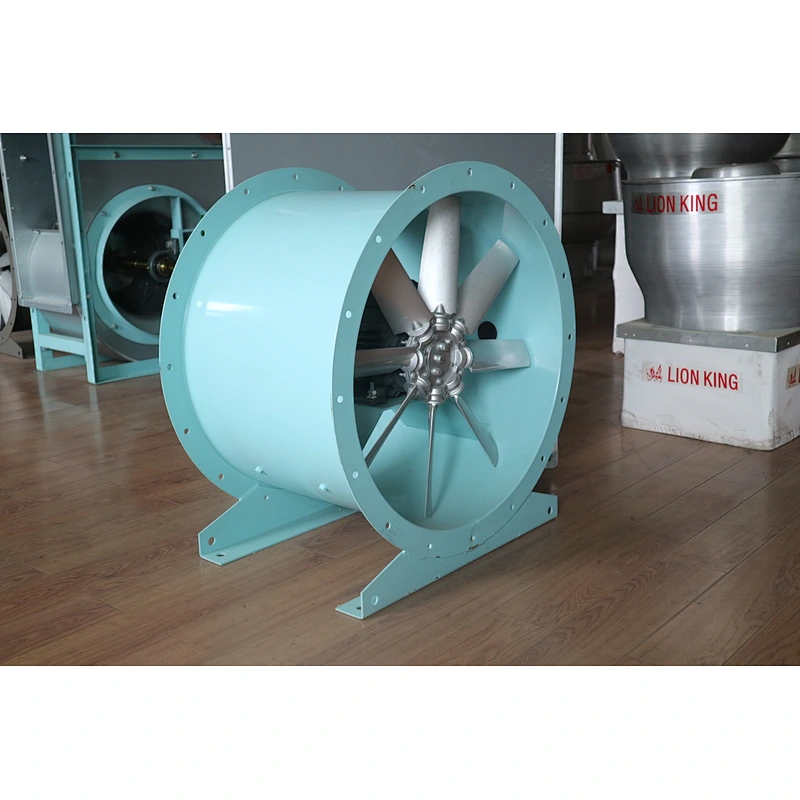

ACF-MA series fans are mainly constructed of impeller, housing, motor and connecting hose. Motor directly driven.
1.Housing
Fan housing and motor frame are made of mild steel, and flange formed by the burring machine. All steel parts are gone through powder coating after manufacturing. According to customer requirements can be hot-dip zinc treatment.

2.Impeller
The hub and blade of the impellers are made of aluminium casting can increase the performance range.

3.Motors
Standard motors' Insulation Class is F, and Ingress Protection is IP54 or above. Ambient temperature is -20 C ~ +40 C, the other operating conditions are shown in the requirements.

Fan characteristic

1.High Efficiency
The introduction of Germany advanced technology and CFD three twisted wing blade, has a more aerodynamic shape, broad leaf type, large twist angle and reasonable hub ratio design, make its efficient wider range. Strict control of casing and blade radial clearance radial clearance M 0.5%. It can reduce air leakage mostly caused by the efficiency loss.

2.Low Noise
Samples of noise spectrum table is based on the AMCA noise detection data collating, contributes to different frequency band muffler selection. For the occasion with more harsh noise requirements, we can provide the coating structure.

3.Reliability and Stability
Fan after two level dynamic balance correction (impeller dynamic balance correction, overall machine dynamic balancing correction ),and the internal impeller dynamic balance grade according to the AMCA204-05 standard G2,5 level, reduce noise and vibration, stable and reliable operation. Fan surface using electrostatic spray processing, no flow phenomenon; environmental protection; appearance, strong adhesion, corrosion resistant ability is high. Fan flange welding free design, directly on the cylinder flanging forming, greatly increases the structural strength of the cylinder body.

4.Strong Applicability
ACF-MA axial flow fan with adjustable angle blade type, can optimize the fan operating point, widened the single models of fan performance range, so that the fan selection more flexible, for the scene of the actual usage, for the two selection, reasonable adjust the fan operating point, can effectively solve the problem of field parameters changes to the actual fan running parameters need to be adjusted to the problem.

Installation

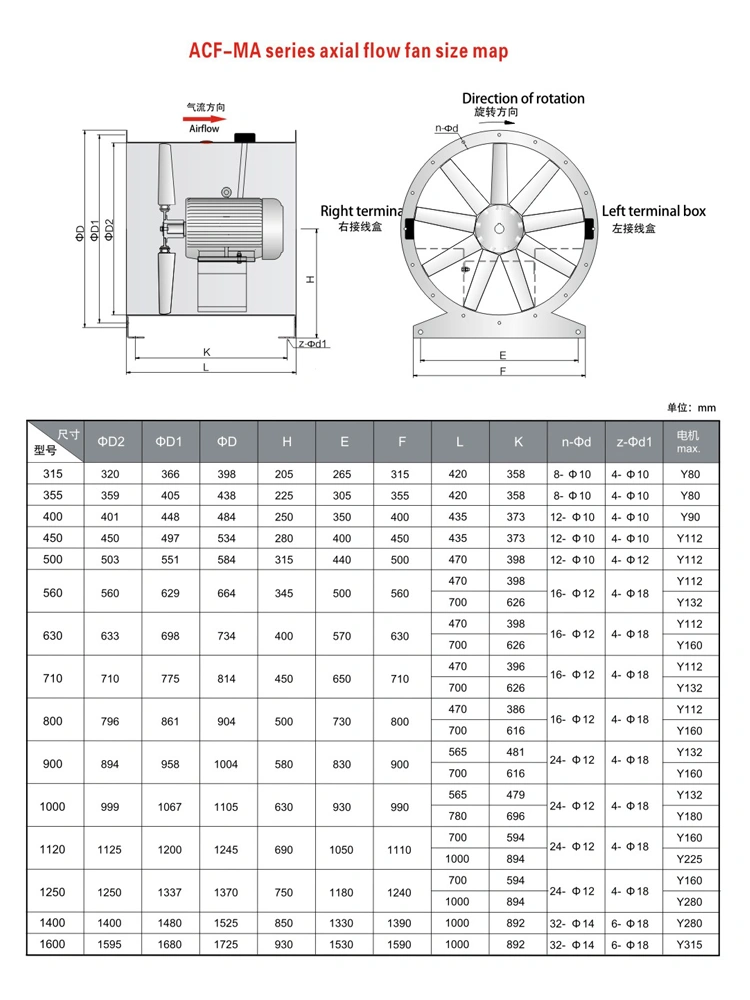

LION KING -Axial flow fans are available for all forms of running. The chart information shows all standard forms of running. Please indicate us when you order.

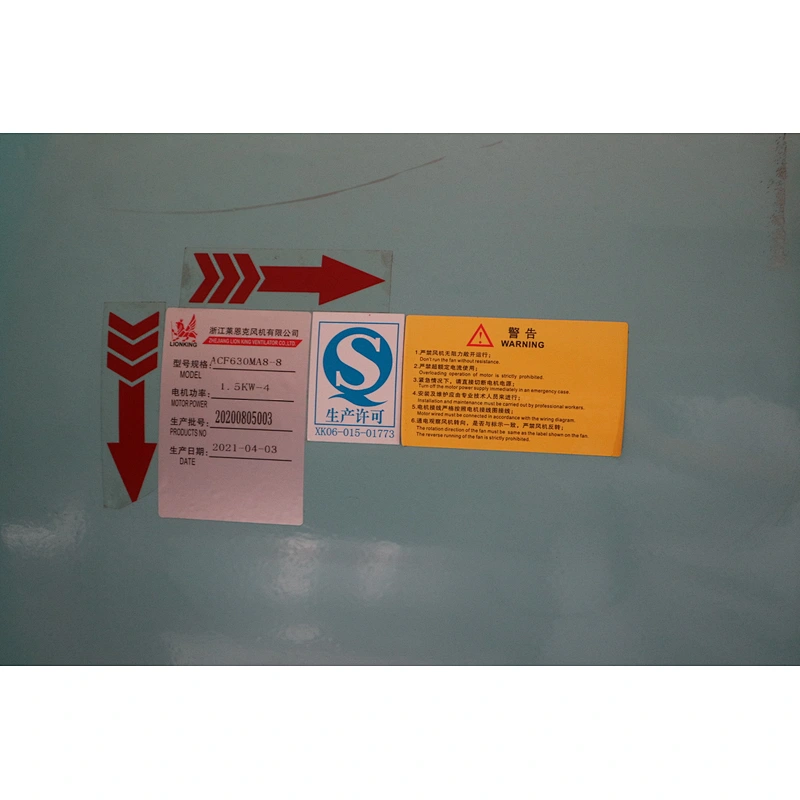

Form of running is especially relevant when weather proof motors are required Arrows indicating correct rotating and direction of airflow are mounted on the outside of the fan housing.

Installation

Sound Levels

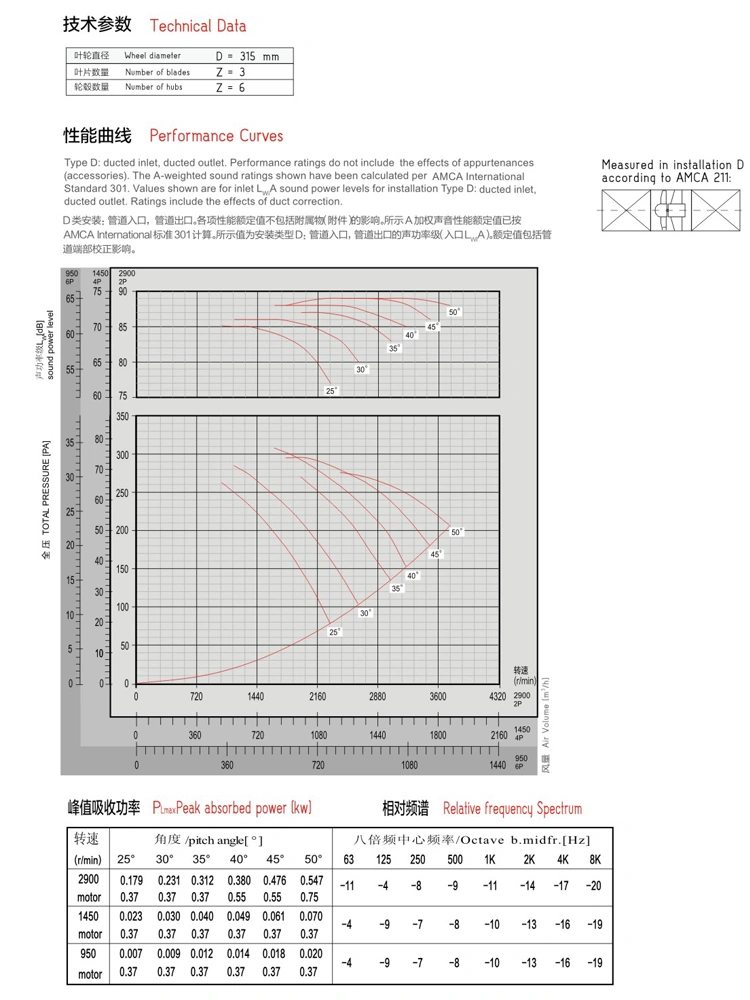

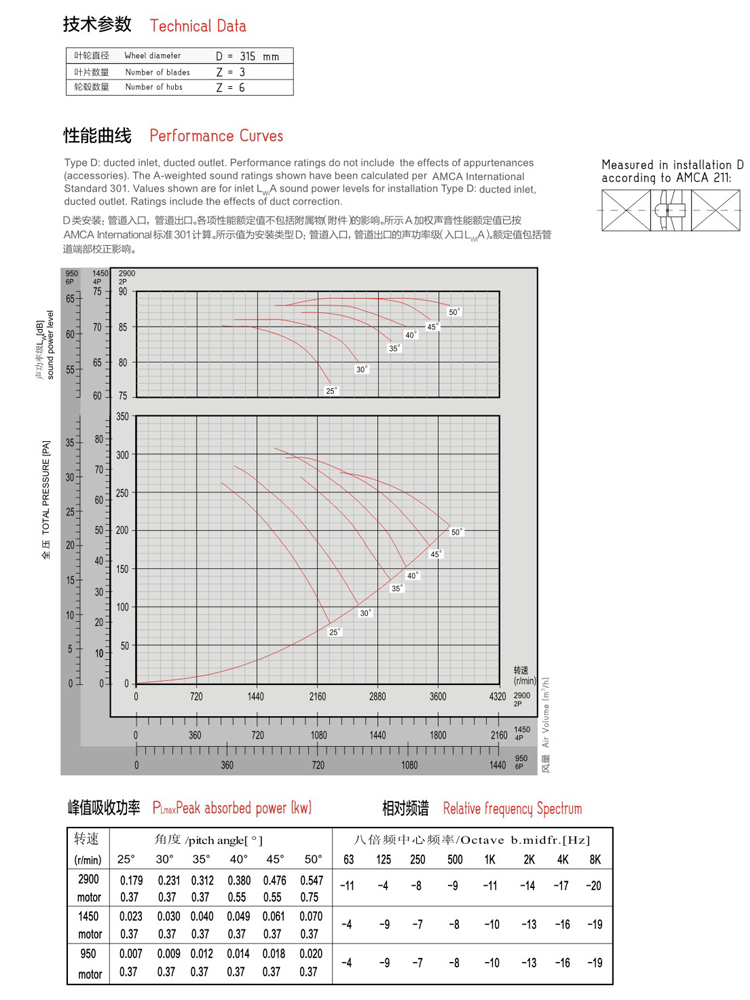

The ascertaining of the sound level follows the Reverberant Room Method according to AMCA 300. In the performance curves shows the A-weighted sound power levels.

mainly application

FAQ

Q: Are you a manufacturer or trading company?
A: Yes, We Zhejiang Lion King Ventilator Co., Ltd. is a professional manufacturer which is the specialist in HVAC fans,axial fans, centrifugal fans, air-conditioning fans, engineering fans etc for the applications of air conditioner, air ex-changer, coolers, heaters, floor convectors, sterilization purifier, air purifiers, medical purifiers, and ventilation ,energy industry, 5G cabinet...

Q: Which level of quality are your products?
A: We have got AMCA ,CE ,ROHS,CCC certificate so far.
Above average and top class quality are your options in our range. The quality is pretty good ,and trusted by many customers in overseas .

Q: What is your minimum order quantity, can you send me samples?
A: Our minimum order quantity is 1 set, that means sample order or test order is acceptable, warmly welcome you to come and visit our company.

Q: Can the machine be customized as our need, such as put on our logo?
A: Surely our machine can be customized as your need, Put on your logo and OEM package are also available.

Q: What's your lead time ?
A: 7days -25days , depends on volume and different items .

Q: About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
A: Always a pre-production sample before mass production;
All products are conducted strict QC and inspection before shipping.
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.

Q: How is your responding time ?
A: You will get reply within 2 hours online by Wechat ,Whatsapp , Skype , Messager and Trade manager .
You will get respond within 8 hours offline by email  .
Moble is always availble for picking up your calls .

factory introduction

Zhejiang Lion King Ventilator Co., Ltd. use German advanced technology and process to make

axial fans, centrifugal fans, air-conditioning fans, engineering fans etc . since 1994.

We have AMCA ,CE ,ROHS,CCC certificate,and most famous engineer case is Great Hall of the
People and Shanghai DuPont Plant .

WhatsApp: +8618167069821☎️Looking for Lionking agents.

manufacture equipment

production process

successful cases

custom instructions

Customization Available

If you don't find the products you want in our range , please contact us for customization services freely . our profesional engineer team will work out a satisfied stuff with you .
Any dimensions of cross flow fans , perfromances of air flow ,air pressure ,noise level , installation positions or other functions are availble for your customizing
