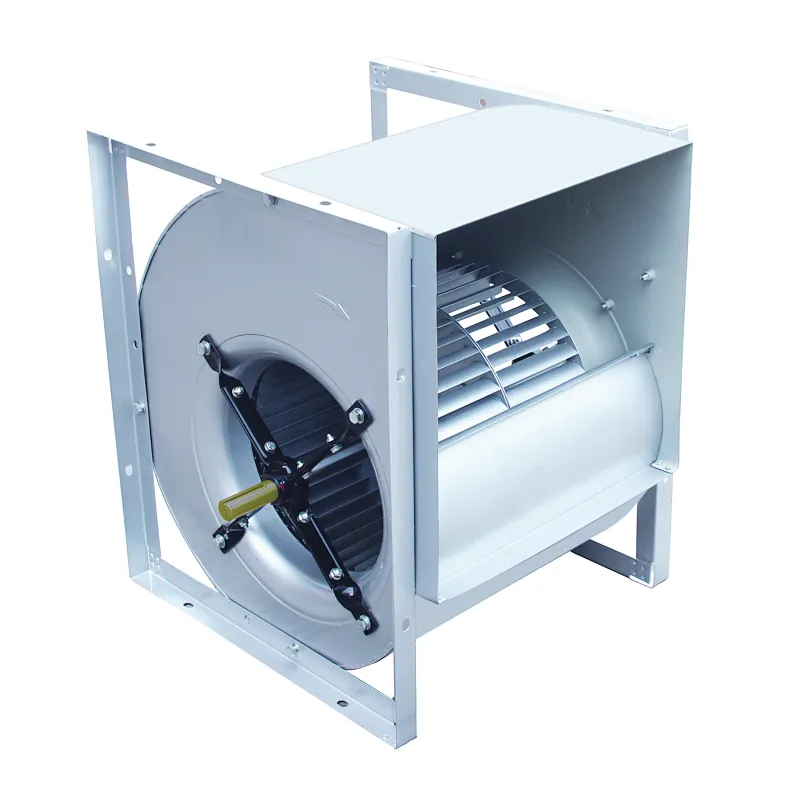

moisture proof Centrifugal fan

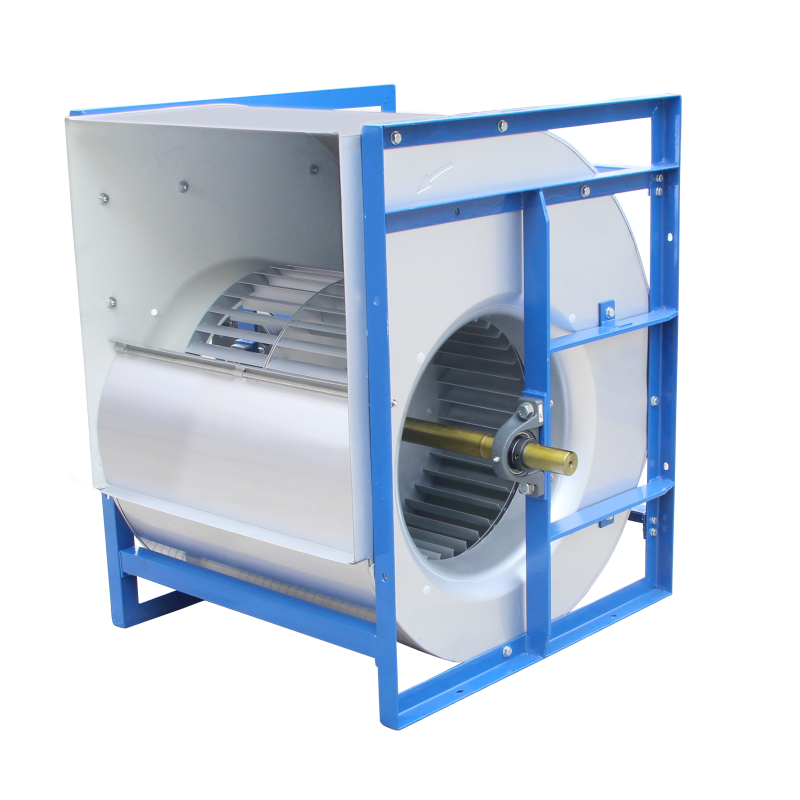

LKD series of forward curved multi-blades centrifugal fans are newly developed products which adopt special curved leaf shape blades. The air volume range can reach 2500 -100000 m³/h. The air inside the flow channel is strongly accelerated, greatly reducing the vortex shedding in the impeller and eliminating the vortex at the entrance of the blade, which will significantly reduces the noise and greatly improve the efficiency of the fan.
1,Impeller Diameter: 280~1000 mm
2,Air Volume Range : 2500~100000 m³/h
3,Total Pressure Range: 200~1500 Pa
4,Total Pressure Efficiency: 58~68%
5,Sound Range: 70~110dB(A)
6,Driving Type: Belt drive.
7,Model: 200, 225, 250, 280, 315, 355, 400, 450, 500, 560, 630, 710, 800, 900, 1000
8,Applications: Ideal subsidiary equipment for modular air conditioning units, and other heating, air-conditioning, purification, ventilating equipment.
