- After-sales Service Provided:No overseas service provided
- Driving Mode:Single phase motor direct drive
- Impeller diameter:200~320mm
- Total pressure:68~624Pa
- Sound range:50-73 dB(A)
- Type:Centrifugal Fan
- Applicable Industries:Hotels
- Applicable Industries:Building Material Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Restaurant
- Applicable Industries:Food Shop
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- Applicable Industries:Advertising Company
- Blade Material:galvanized sheet
- Mounting:FREE STANDING

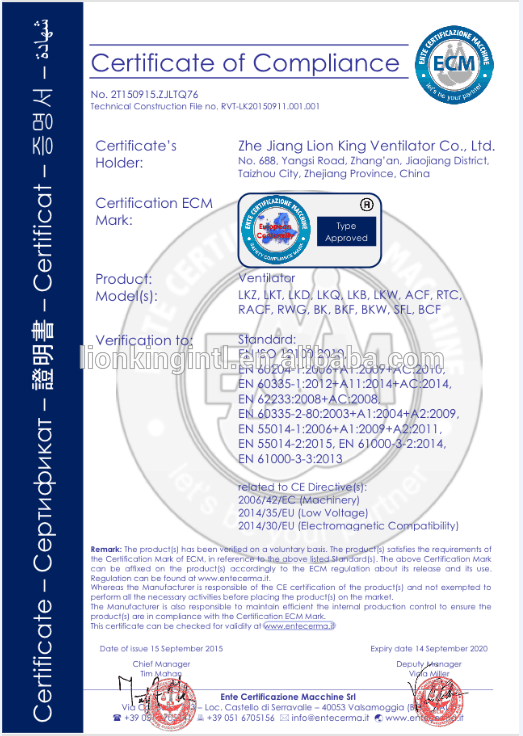

- Certification:CCC
- Certification:ce
- Certification:Other
- Warranty:1 Year
- After-sales Service Provided:Online support
- Place of Origin:CN;ZHE
- Brand Name:LION KING
- Voltage:220V

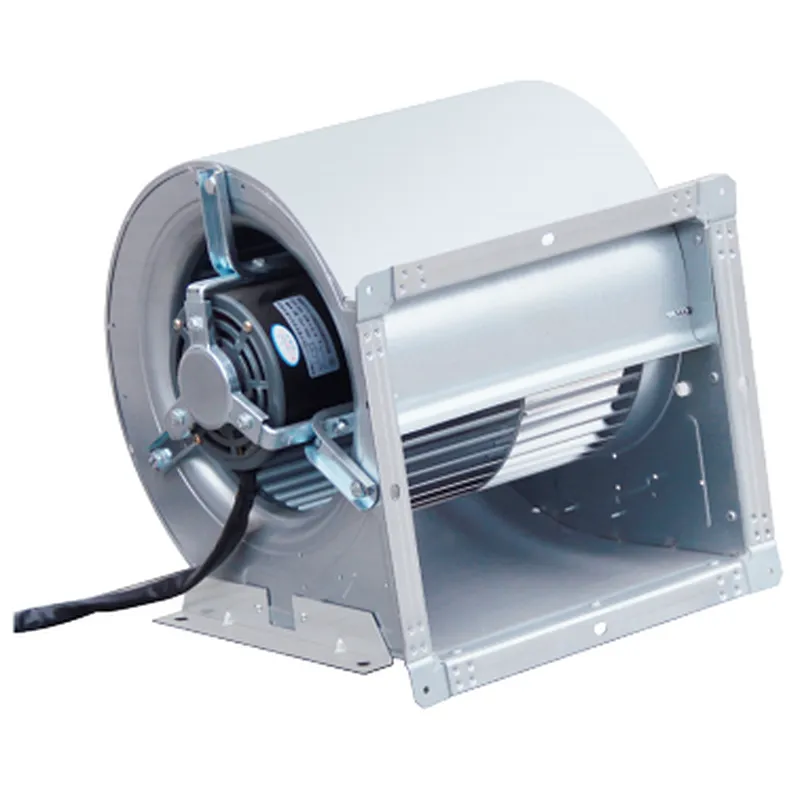

LKZ Forward Curved Multi-blades Centrifugal Fan
LKZ series of centrifugal air-conditioning fans are based on LKT series. The fans are low noise fans which are newly developed according to the international advanced similar products. With single phase motor direct drive, the fans are characterized by high efficiency, low noise, easy speed regulation, compact structure. They are the ideal subsidiary equipment for variable air volume(VAV) air conditioner, ducted air conditioning unit, and other heating, purification equipment.
Impefier Diameter: 200 ~320mm
Air Volume Range: 800~5000m3/h
Total Pressure Range: 68~624Pa
Sound Rmnge: 50~73dB(A)
Drive Type: Single-phase motor direct drive
Model: 7 7, 8 8, 9 7, 9-9, 10-8, 10-10 r 12-9, 12-12 Non standard products are available according to customer s requirements.Brushless DC motor can be used
Applications: Ideal subsidiary equipment for variable air volume (VAV) air conditioner, ducted air conditioning unit, and other heating,purification equipment.
Ventilation Fan:
1.high efficiency
2.low noise
3.high versatility
4.air-conditioning centrifugal fan
5.motor type brushless or not
Other similar centrifugal fan

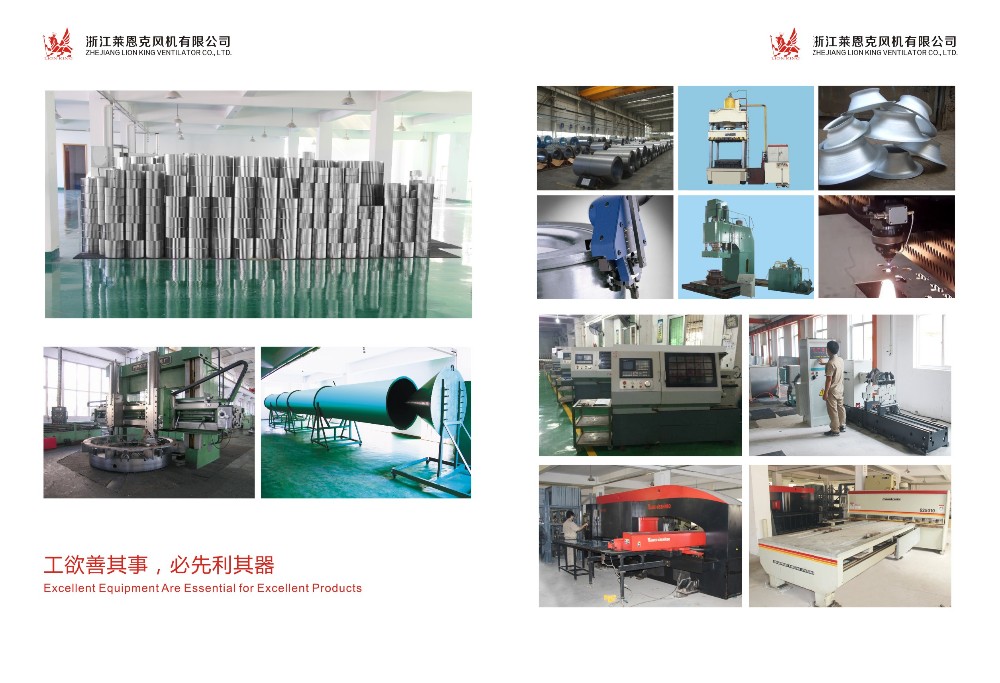

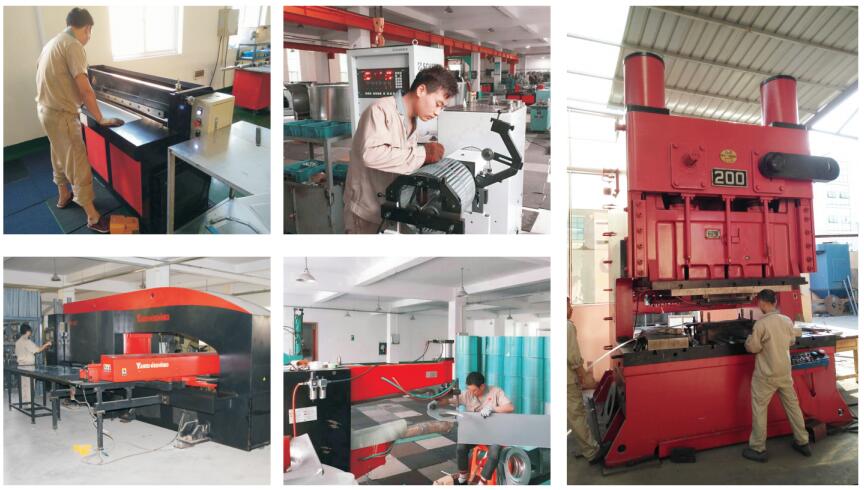

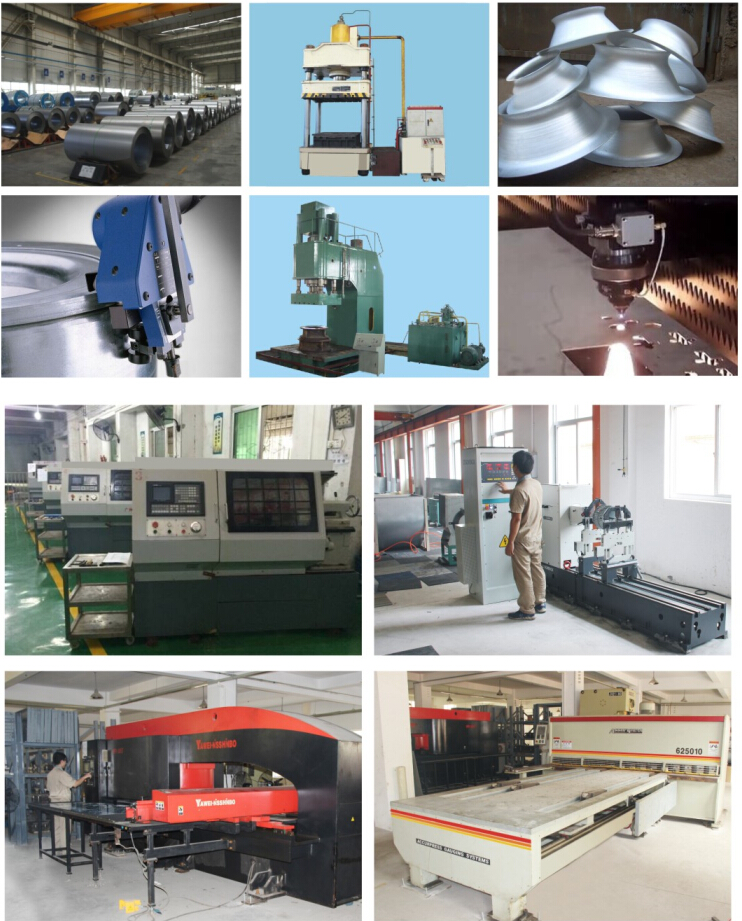

Zhejiang Lion King Ventilator Co., Ltd., a professional manufacturer of various axial fans, centrifugal fans, air-conditioning fans, engineering fans, mainly consists of Research and Development Department, Production Department, Sales Department, Testing Center, and Customer Service.
