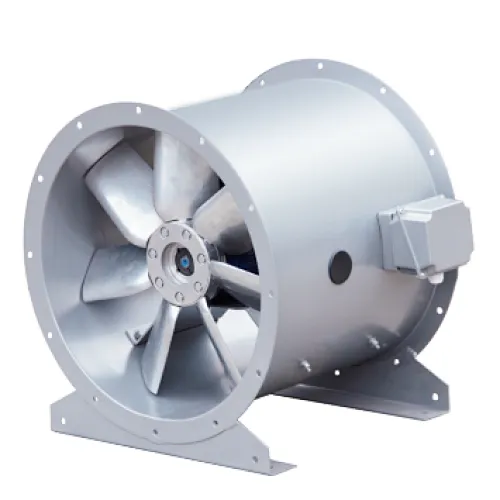

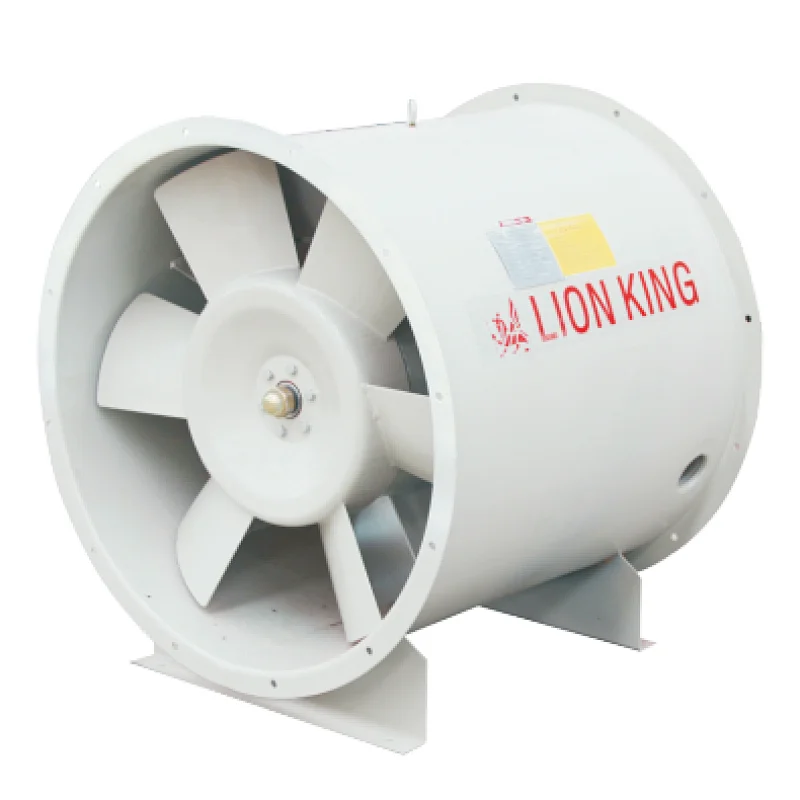

Industrial Exhaust Cooling Belt Drive Axial Fan

Industrial Exhaust Cooling Belt Drive Axial Fan

This type axial flow fan can work in high temperature 280 for more than 0.5 hour . And main used for ventilation and fire fighting exhaust systems at special place of engineering building , such as explosion - proof or anti-corrosion environment

1. Feature and construction

ACF Axial flow fans are specially manufactured for all applications and mounting positions in case sizes 315mm up to 1,600 mm diameter . The performance range is from 1,000 up to 230,000 M3/hr ,on air volume at total pressure up to 1,500 Pa .

2.Casing

Fan case and motor fixing are made of mild steel , all steel parts are hot dip galvanized after manufacturing . Flanges on both ends , drilled in according to DIN 24154.

3.Impeller

Hubs and blades are made of die-cast aluminum alloy , the aerodynamical profile guarantees high efficiency and low noise .

4.Motor

The fans uses as standard closed squirrel cage matars rated to IEC 34 , if required , EPACT will be ok also . Temperature from -40 to +40°C

The motor bearing life is L10

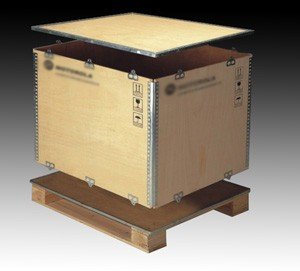

Standard PLY case .

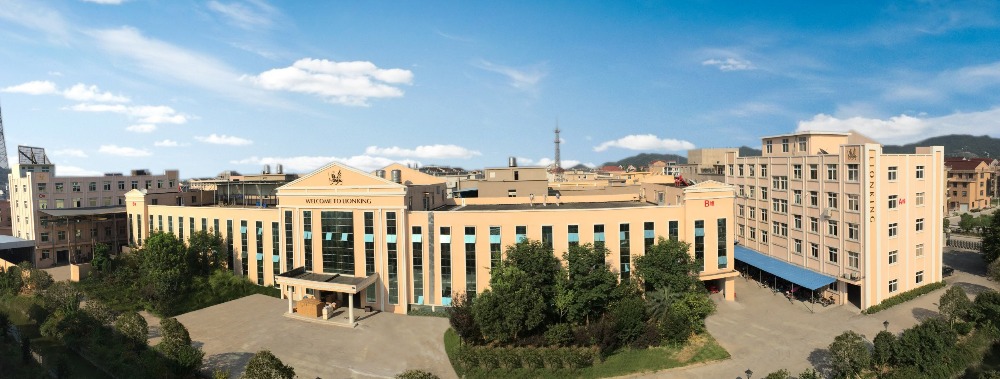

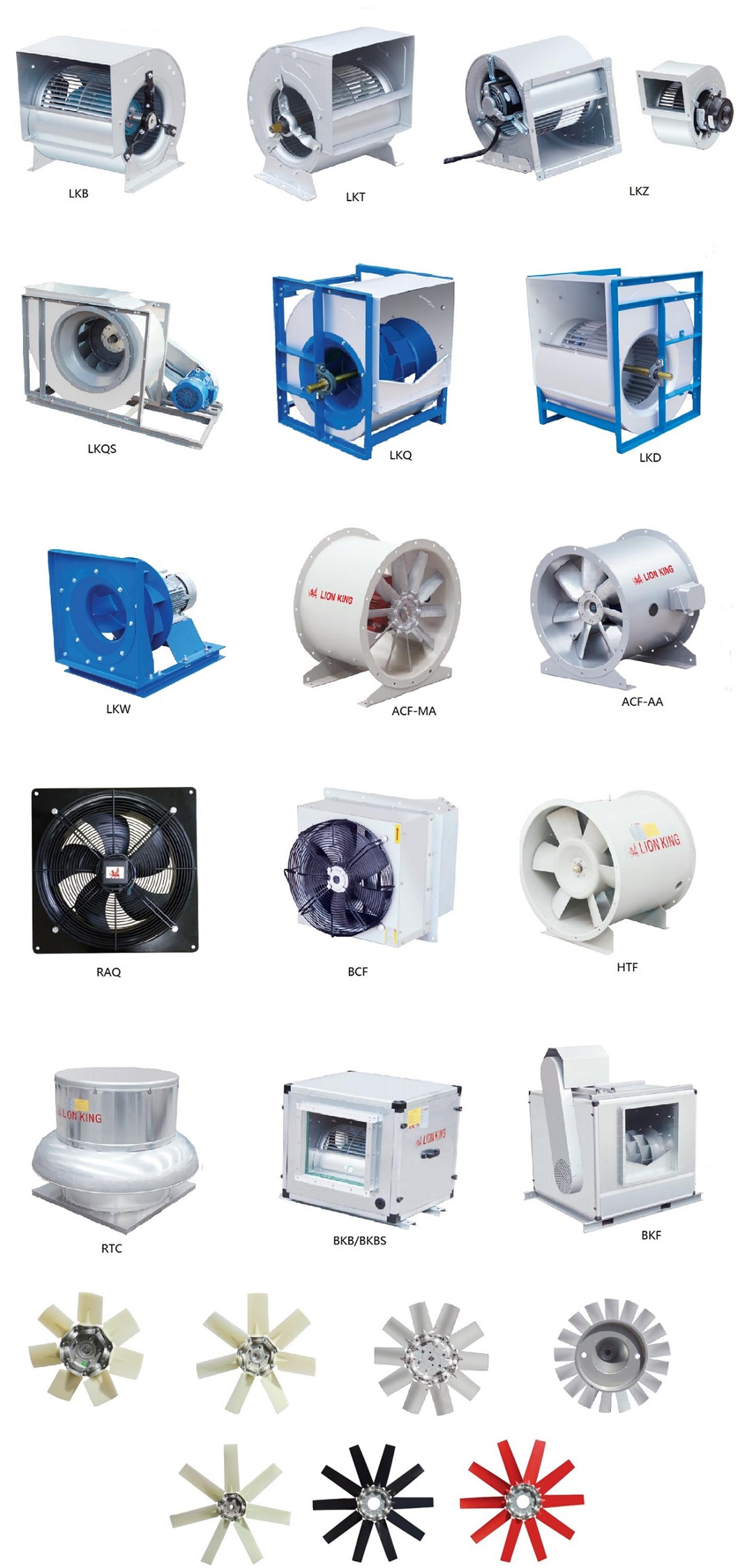

Zhejiang Lion King Ventilator Co., Ltd., a professional manufacturer of various axial fans, centrifugal fans, air-conditioning fans, engineering fans, mainly consists of Research and Development Department, Production Department, Sales Department, Testing Center, and Customer Service.
